YW20 circular watertight connector

Product introduction

• This series connector is mainly used for communication system of diving equipment and ships.

• The product plug end uses the rubber injection molding. The socket uesS the stainless steel glass sintering way. The sealing is good.

• Product core number and size according to customer requirements for selection.

• The product is easy to operate and install, especially suitable for occasions with limited space.

• High reliability and long life.

• The product adopts thread connection. It’s easy to use.

• Execution standard: Q/ZH.J1028-2005<<Circular under water tight connector>>

Technical Performance

• Environmental temperature: -5℃～+65℃

• Salt mist: 500h

• The sealing performance: resistant to static water pressure 5MPa

• Vibration: 10Hz～500Hz  Acceleration: 196m/s2  The duration of the time:11 seconds   Current transient breaking ≤1μs

• Rated current: 5A

• Insulation resistance: ≥500 MΩ

• Medium pressure: 1500V.AC

• Contact resistance: ≤10MΩ

• Bearing: 500N

CONTACT CONFIGURATIONS

1.Main name code: YW means circular watertight connector, design serial number 20;

2.Housing number: 09, 11, 13.15, 17, 19, 21, 23, 25;

3. Contact core number: 6,13,22, 37,55,66,79,100;

4. Product form: t-plug, z-socket;

5. Contact parts: k-hole,J-needle;

6. Socket flange appearance: 10 means rectangle, 11 means circle;

Sign the sample

YW20-1966tk: Vw20 circular watertight connector for housing 19, 66 core, hole type plug.

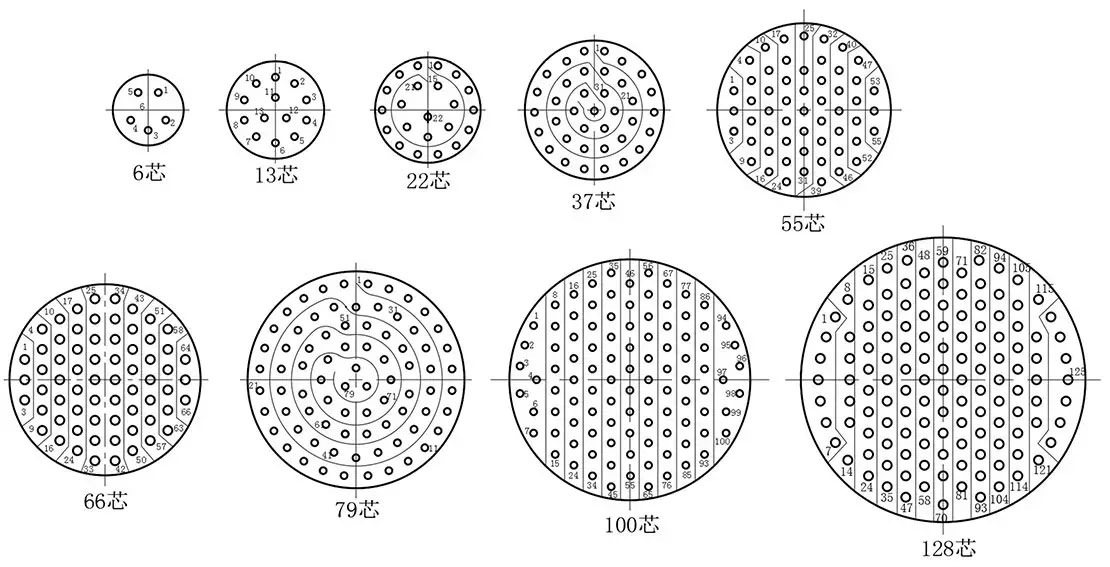

Model spectrum
