Product Introduction
Number of cores: 1 to 16 cores
The product adopts rubber injection molding. The panel is installed with brass or stainless steel. It has small size, light weight, wear resistance, high reliability and practicality.
The products are interchangeable with Seacon and SubConn's Standard Circular products.
Mainly used in marine research, marine oil, underwater engineering equipment, defense weapon systems, etc., underwater transmission of underwater televisions, lighting, diving communications, underwater robots, drag arrays, flow meters, marine animal tracking, etc. And monitoring network
Implementation of corporate standards: Q/ZH.J1051-2010 "YW10 series of deep seawater dense electrical connector detailed specifications"
Technical Performance
Ambient temperature: -5°C to +65°C
Flame Retardant Rating: UL94- V0
Salt fog: 500h
Working water depth: 7000 meters
Mechanical life: ≥ 500 times
Open pressure: 70MPa
With pressure: 70MPa
Vibration: 10Hz～500Hz; acceleration, acceleration 147m/s2, instantaneous breaking current ≤1μs
Impact: Acceleration 100g, half sine wave, duration 11ms, instantaneous breaking current ≤ 1μs
Dielectric pressure: 1500V
Insulation resistance: ≥ 500MΩ (500VDC)
Contact resistance: ≤10mΩ
Rated current: 10A (2 cores to 4 cores), 6A (6 cores to 10 cores), 5 A (12 cores to 16 cores), single contact maximum load capacity 19 A
Rated voltage: 600V

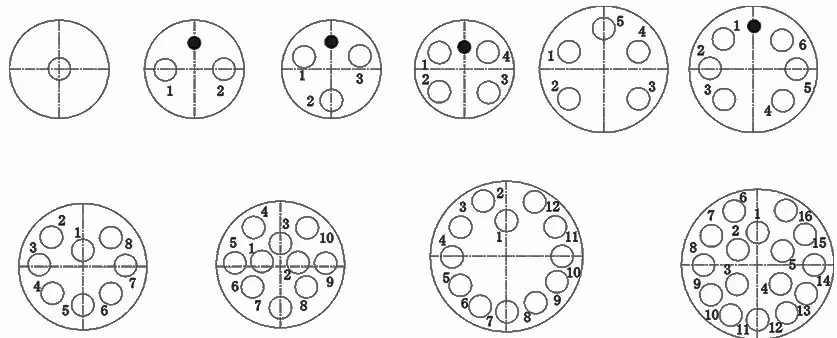

Spectral Arrangement (View From Jack Butt End)
Order Mark
①YW10 ②L – ③4 ④F ⑤S ⑥F ⑦S
①: main said code: YW said circular wet plug connector, design number 10;
②: Product Category: L-cable, H-through-wall installation, - empty connector;
③: Number of contact cores: 1, 2, 3, 4, 6, 8, 10, 12, 16;
④: contact type: F-hole, M-needle;
⑤: Seat shell material: S-brass B-stainless steel;
⑥: locking sleeve: F-thread locking sleeve, M- male thread locking sleeve;
⑦: Locking sleeve material: no mark - polyformaldehyde plastic, S-brass, B-stainless steel;
Flag Example
YW10L–4FS-MS：表示接触件数目为4、插孔插座、带公锁紧套，接触件尾端为电缆式的YW10深海水密圆形电连接器。YW10L–4FS-MS: indicates that the number of contacts is 4, jack socket, with male locking sleeve, and the contact end is a cable type YW10 deep seawater dense round electrical connector.

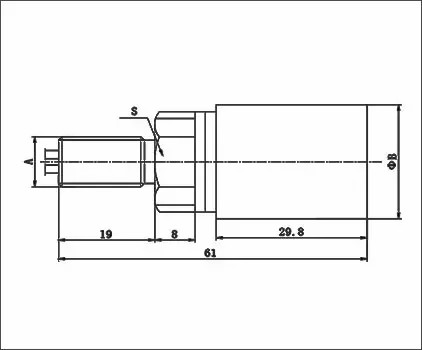

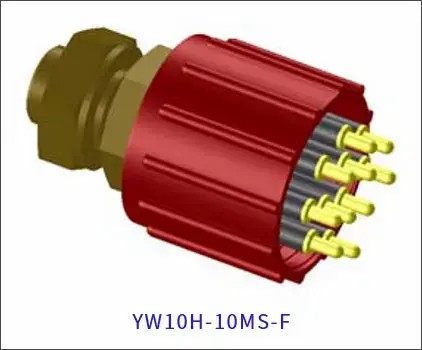

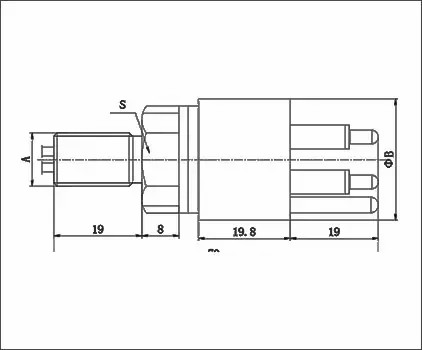

Wall Mounting Needle (1 Core -10 Core)
| ▼Dimensions | ▼Stereogram |
 |  |
Product number | Product core number | A | φB | Product number | Product core number | A | φB |
YW10H-1MS | 1 | 7 /16-20UNF-2A | 25 | YW10H-5MS | 5 | 7 /16-20UNF-2A | 25 |
YW10H-2MS | 2 | 7 /16-20UNF-2A | 25 | YW10H-6MS | 6 | 5 /8-18UNF-2A | 31.8 |
YW10H-3MS | 3 | 7 /16-20UNF-2A | 25 | YW10H-8MS | 8 | 5 /8-18UNF-2A | 31.8 |
YW10H-4MS | 4 | 7 /16-20UNF-2A | 25 | YW10H-10MS | 10 | 5 /8-18UNF-2A | 31.8 |
Wall Mounting Hole Seat (1 Core -10 Core)
| ▼ Dimensions | ▼ Stereogram |
 |  |
Product number | Product core number | A | φB | Product number | Product core number | A | φB |
YW10H-1FS | 1 | 7 /16-20UNF-2A | 25 | YW10H-5FS | 5 | 7 /16-20UNF-2A | 25 |
YW10H-2FS | 2 | 7 /16-20UNF-2A | 25 | YW10H-6FS | 6 | 5 /8-18UNF-2A | 31.8 |
YW10H-3FS | 3 | 7 /16-20UNF-2A | 25 | YW10H-8FS | 8 | 5 /8-18UNF-2A | 31.8 |
YW10H-4FS | 4 | 7 /16-20UNF-2A | 25 | YW10H-10FS | 10 | 5 /8-18UNF-2A | 31.8 |

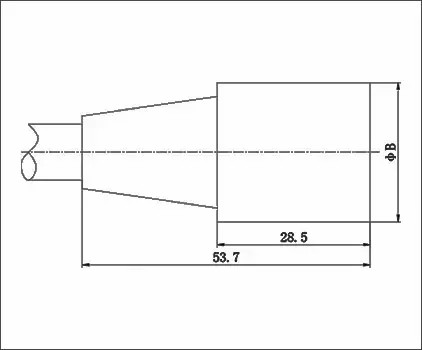

Cable Needle (1 Core -10 Core)
| ▼ Dimensions | ▼ Stereogram |
 |  |
Product number | Product core number | φB | Product number | Product core number | φB |
YW10H-1M | 1 | 25 | YW10H-5M | 5 | 25 |
YW10H-2M | 2 | 25 | YW10H-6M | 6 | 31.8 |
YW10H-3M | 3 | 25 | YW10H-8M | 8 | 31.8 |
YW10H-4M | 4 | 25 | YW10H-10M | 10 | 31.8 |

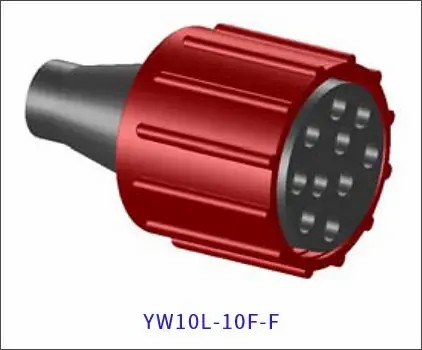

Cable Type Hole Seat (1 Core -10 Core)
| ▼ Dimensions | ▼Stereogram |
 |  |
Product number | Product core number | φB | Product number | Product core number | φB |
YW10H-1F | 1 | 25 | YW10H-5F | 5 | 25 |
YW10H-2F | 2 | 25 | YW10H-6F | 6 | 31.8 |
YW10H-3F | 3 | 25 | YW10H-8F | 8 | 31.8 |
YW10H-4F | 4 | 25 | YW10H-10F | 10 | 31.8 |

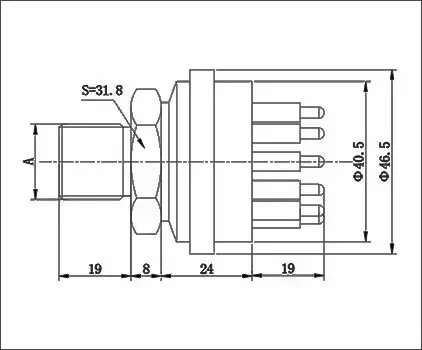

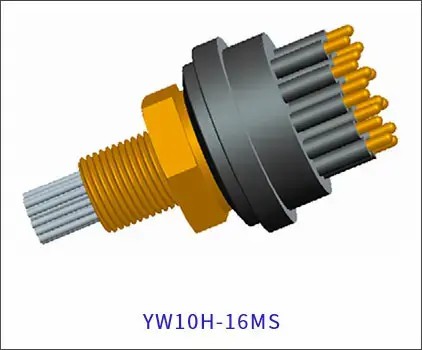

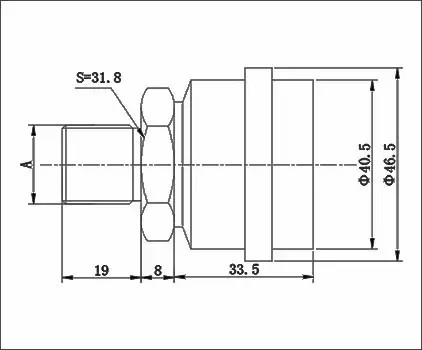

Wall Mount Header (12 Cores - 16 Cores)
| ▼Dimensions | ▼Stereogram |
 |  |
Product number | Product core number | φA | Product number | Product core number | φA |
YW10H-12MS | 12 | 5 /8-18UNF-2A | YW10H-16MS | 16 | 3/4-16UNF-2A |

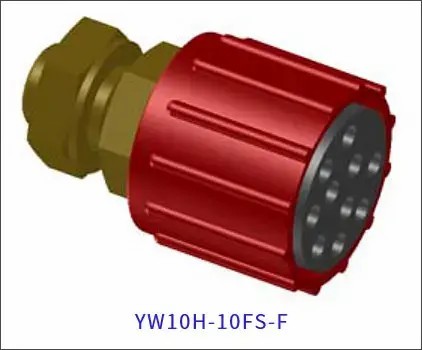

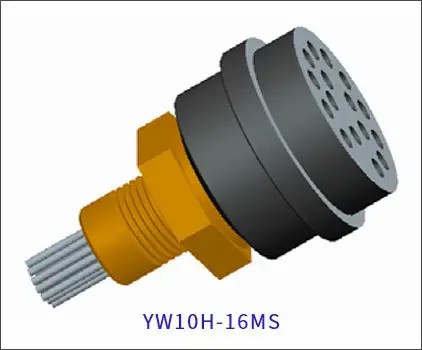

Wall Mounting Hole Seat (12 Cores - 16 Cores)
| ▼ Dimensions | ▼ Stereogram |
 |  |
Product number | Product core number | φA | Product number | Product core number | φA |
YW10H-12FS | 12 | 5 /8-18UNF-2A | YW10H-16FS | 16 | 3/4-16UNF-2A |

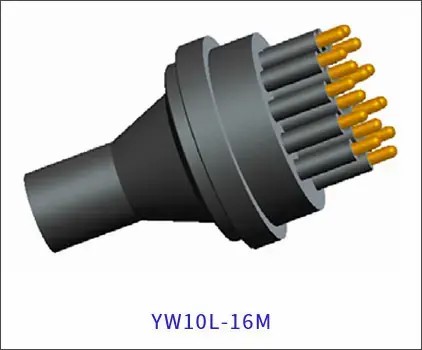

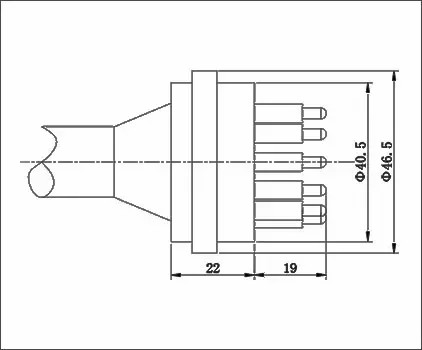

Cable Type Needle (12 Cores - 16 Cores)
| ▼ Dimensions | ▼ Stereogram |
|
|

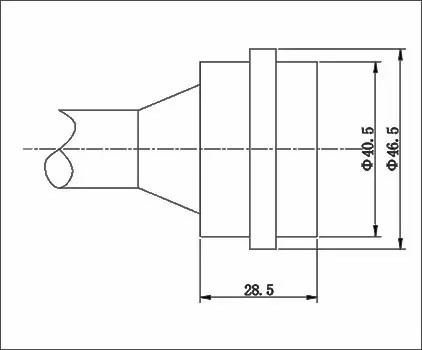

Cable Hole Head (12 Cores - 16 Cores)
| ▼ Dimensions | ▼ Stereogram |
 |  |

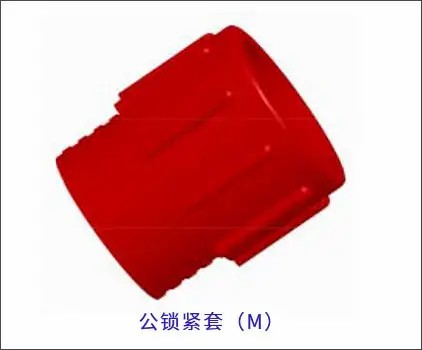

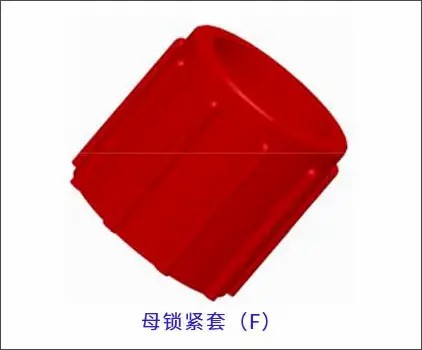

Locking Sleeve
| ▼Dimensions | ▼Stereogram |
 |  |
| ▼Dimensions | ▼Stereogram |
 |  |
Applicable core number | A | B | C | D |
2-4 core | 37 | 36 | 33 | 36 |
6-10 core | 37 | 41 | 33 | 41 |
12-16 core | 35 | 60.5 | 30 | 60.5 |

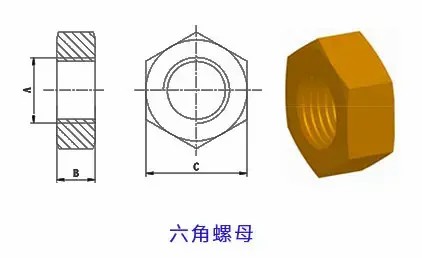

Mounting Nut And Washer
 |  |
Product core number | A | B | C | D | E | F |
2-4 core | 7 /16-20UNF-2B | 6.5 | 19 | 1.2 | 19 | 11.5 |
6-12 core | 5 /8-18UNF-2B | 8 | 25 | 1.5 | 25 | 16.5 |
16 core | 3 /4-16UNF-2B | 10 | 28 | 1.8 | 28 | 20 |
