JW1 Underwater Electrical Connectors

For product pricing, customization, or other inquiries

Availability:

Quantity:



Get A Free Quote

Product Description

Product Introduction

Number of cores: There are seven specifications of 2, 3, 4, 5, 6, 7, and 8 cores
Rubber injection molding, panel mounting brass or stainless steel, small size, light weight, wear resistance, high reliability and practicality
Interchangeability with Mini Wet pluggables from companies such as Impulse
Mainly used in marine research, marine oil, underwater engineering equipment, defense weapon systems, etc., underwater transmission of underwater televisions, lighting, diving communications, underwater robots, drag arrays, flow meters, marine animal tracking, etc. And monitoring network
Implementation of corporate standards: Q/ZH.J1055 "JW1 series of deep seawater dense electrical connector detailed specifications"

Technical Performance

Ambient temperature: -5°C to +65°C
Flame Retardant Rating: UL94- V0
Salt fog: 500h
Working water depth: 7000 meters
Mechanical life: ≥ 500 times
Open pressure: 70Mpa (through wall socket 50Mpa)
With pressure: 70MPa
Vibration: 10Hz～500Hz; acceleration, acceleration 147m/s2, instantaneous breaking current ≤1μs
Impact: Acceleration 100g, half sine wave, duration 11ms, instantaneous breaking current ≤ 1μs
Dielectric pressure: 1000V
Insulation resistance: ≥200MΩ(300VDC)
Contact resistance: ≤10mΩ
Rated current: 5A (core), 3A (3 cores to 8 cores)
Rated voltage: 250V

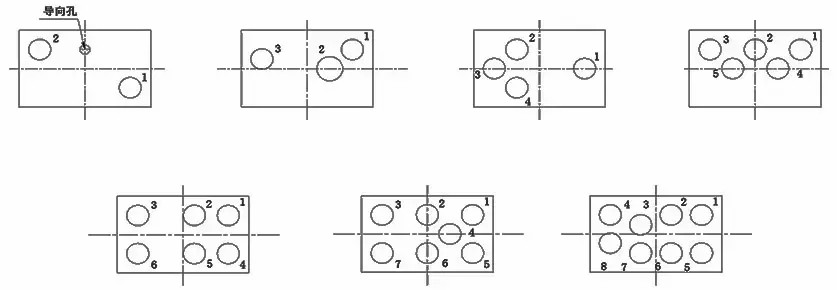

Spectral Arrangement (View From Jack Butt End)

Order Mark

①JW ②1 ③L– ④7 ⑤T ⑥J

① : main claim code: JW represents a rectangular watertight electrical connector;

② : product design number;

③ : Product category: L-cable, H-through wall installation, H1-90° wall-through installation, D-empty connector;

④: Number of contacts: 2, 3, 4, 5, 6, 7, 8;

⑤: Product Form: T-Plug, Z-Socket;

⑥: contact type: K-hole, J-needle;

Flag Example

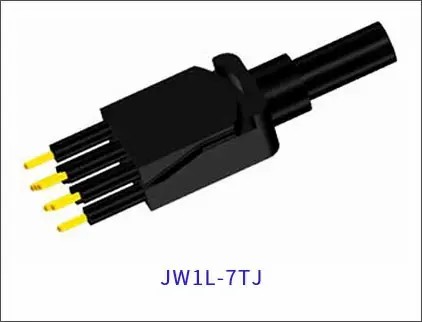

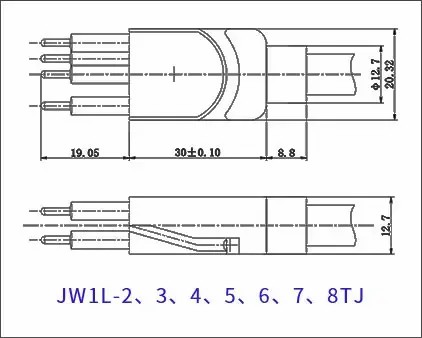

JW1L–7TJ: indicates that the number of contacts is 7. The plug connector and the contact end are cable type JW1 deep seawater dense rectangular electrical connectors.

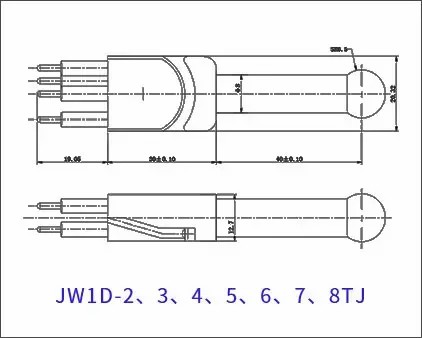

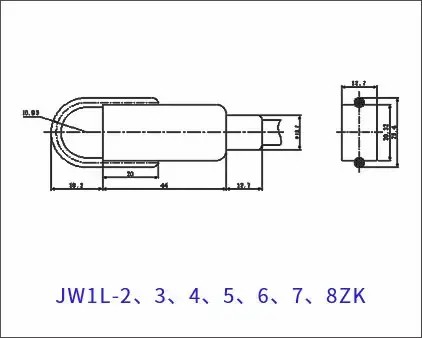

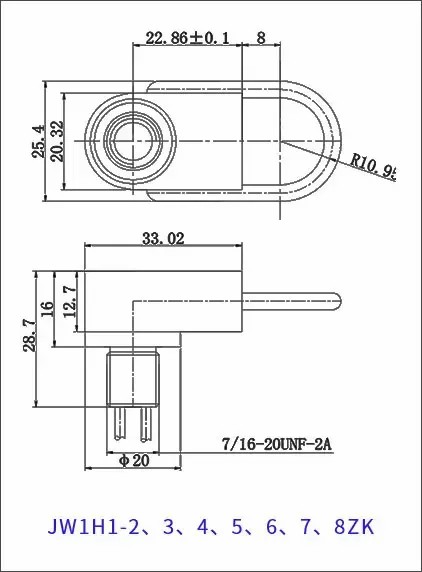

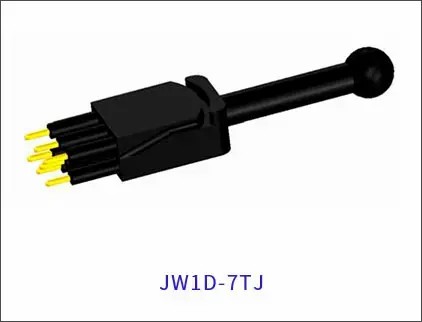

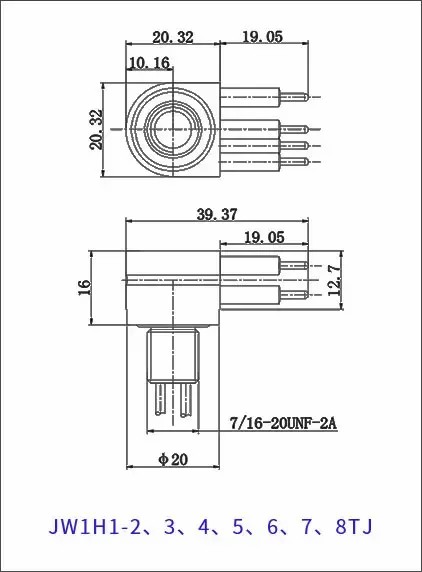

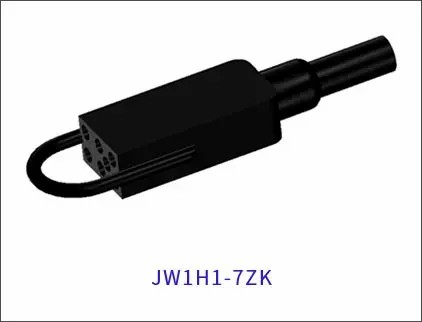

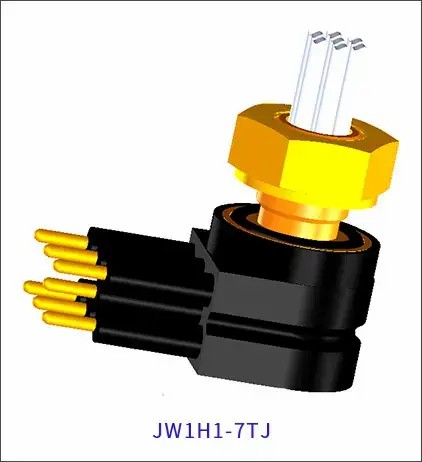

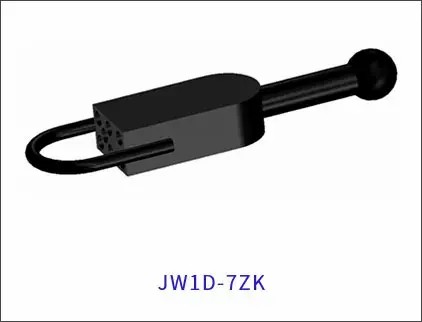

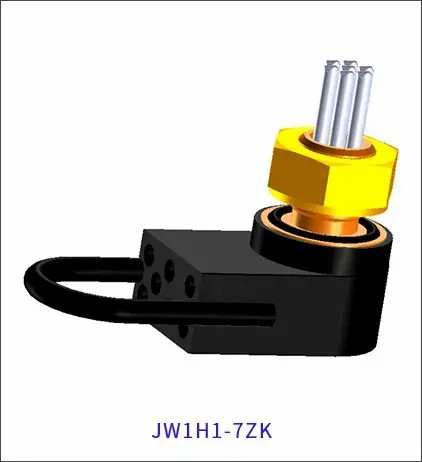

Wall Mounting
