The product specification table
Model | Ratde Current | Rings | L（mm） | |
P（10A、15A、20A） | S（2A） | |||
KSR050-6P | 6 | - | 6 | 59.5 |
KSR050-12P | 12 | - | 12 | 89.5 |
KSR050-18P | 18 | - | 18 | 119.5 |
KSR050-24P | 24 | - | 24 | 149.5 |
PKSR050-30P | 30 | - | 30 | 179.5 |
KSR050-36P | 36 | - | 36 | 209.5 |
KSR050-12S | - | 12 | 12 | 59.5 |
KSR050-24S | - | 24 | 24 | 89.5 |
KSR050-36S | - | 36 | 36 | 119.5 |
KSR050-48S | - | 48 | 48 | 149.5 |
KSR050-60S | - | 60 | 60 | 179.5 |
KSR050-72S | - | 72 | 72 | 209.5 |
KSR050-6P/12S | 6 | 12 | 18 | 89.5 |
KSR050-6P/24S | 6 | 24 | 30 | 119.5 |
KSR050-6P/36S | 6 | 36 | 42 | 149.5 |
KSR050-6P/48S | 6 | 48 | 54 | 179.5 |
KSR050-6P/60S | 6 | 60 | 66 | 209.5 |
KSR050-12P/12S | 12 | 12 | 24 | 119.5 |
KSR050-12P/24S | 12 | 24 | 36 | 149.5 |
KSR050-12P/36S | 12 | 36 | 48 | 179.5 |
KSR050-12P/48S | 12 | 48 | 60 | 209.5 |
KSR050-18P/12S | 12 | 12 | 24 | 149.5 |
KSR050-18P/24S | 18 | 24 | 42 | 179.5 |
KSR050-18P/36S | 18 | 36 | 54 | 209.5 |
KSR050-24P/12S | 24 | 12 | 36 | 179.5 |
KSR050-24P/24S | 24 | 24 | 48 | 209.5 |
KSR050-30P/12S | 30 | 12 | 42 | 209.5 |
Product model selection instructions： KSR 050 - 6P / 12S (Additional information)
① ② ③ ④
◆ ① KSR：On behalf of the hole slip ring.
◆ ② 050：The diameter of the slip ring rotor is 50 mm.
◆ ③ 6P：On behalf of the 6 ring power ring.
◆ ④ 12S：On behalf of the 12 ring signal ring.
Note: The additional description is not part of the product model, the customer in the selection, please specify the slip ring model and parameter requirements.
Such as: ring number, current, voltage, wire length, working speed, operating temperature, degree of protection and so on.
Product technical parameters
Type | Specification | |
P | S | |
Rated Voltage | 0～380VAC | 0～240VAC/VDC |
Insulation Resistance | ≥1000MΩ/500VDC | ≥500MΩ/500VDC |
Dielectric Strength | 1000VAC@50Hz,60S | 500VAC@50Hz,60S |
Electrical Noise | ≤10mΩ | |
Lsad Size | AWG14#，AWG16# | AWG22# |
Lead Length | 500mm Standard 500mm | |
Housing Material | Engineering Plastics or Metal online | |
Contact Material | Preciousmetals | |
Operating Speed | 0 -- 500rpm | |
Working Temperature | -20℃ -- +80℃ | |
Operating Humidity | 60%RH 60%RH or Higher | |
Torque | 6 0.1N.m， 6 0.03N.m | |
Protection Level | IP51 IP51 or Higher | |

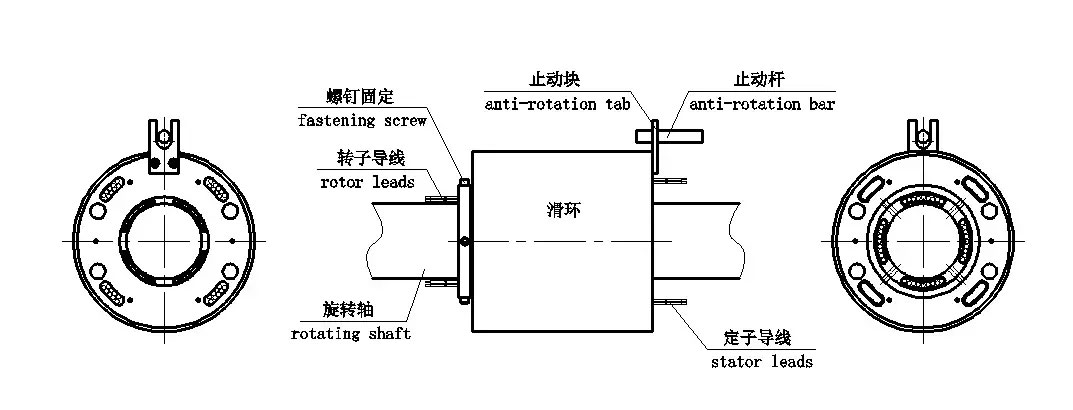

Way of installation
Installation explanation
Sincs the rotors and stators of conductile sliding bodys are very difficunlt to keep concentric during installing,It B recommended that the condnctictive sliding body be fixed to the rotating shaft nith four set screws,and the stop rod insert into scotch,Do not fix the scotch by force,
Attentions
The slip ring should not be used for load bearing,the cables should not be stressed nor tensed.
When installing the slip rings，the cables should be well protectrd.
The slip ring should be used in dry，low dust environment，lf working environment is bad，more protection measures should be taken
