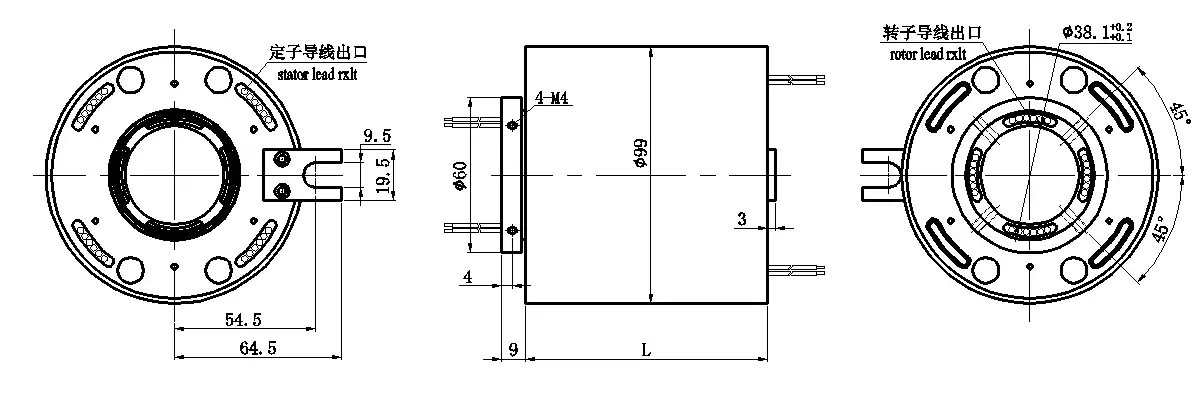

KSR038

The product specification table

Product technical parameters

Product model selection instructions： KSR   038 - 6P  /  12S  (Additional information)

                                                                ①    ②     ③      ④

◆ ① KSR：On behalf of the hole slip ring.

◆ ② 038：The aperture of the slip ring rotor is 38.1 mm (1.5 inches).

◆ ③ 6P：On behalf of the 6 ring power ring.

◆ ④ 12S：On behalf of the 12 ring signal ring.

Note: The additional description is not part of the product model, the customer in the selection, please specify the slip ring model and parameter requirements.

Such as: ring number, current, voltage, wire length, working speed, operating temperature, degree of protection and so on.

Way of installation

Installation explanation

Sincs the rotors and stators of conductile sliding bodys are very difficunlt to keep concentric during installing,It B recommended that the condnctictive sliding body be fixed to the rotating shaft nith four set screws,and the stop rod insert into scotch,Do not fix the scotch by force,

Attentions

The slip ring should not be used for load bearing,the cables should not be stressed nor tensed.

When installing the slip rings，the cables should be well protectrd.

The slip ring should be used in dry，low dust environment，lf working environment is bad，more protection measures should be taken。
